6.7 POWERSTROKE 2011-2020 CP4 FUEL PUMP FAILURE / DEF CONTAMINATION KIT – REMANUFACTURED

$2,499.99

In Stock

Clear

Powerstroke 6.7 2011-2020

Kit Details

Complete repair solution for Powerstroke 6.7 with CP4 fuel pump failure or DEF contamination, featuring Remanufactured Injectors and Pump. Simply flushing the fuel system is inadequate, and could lead to residual contaminants in your fuel system.  Contamination is the number one cause of repeat injector failure. Replacing all of the fuel system components is the only way to prevent recurring contamination issues.

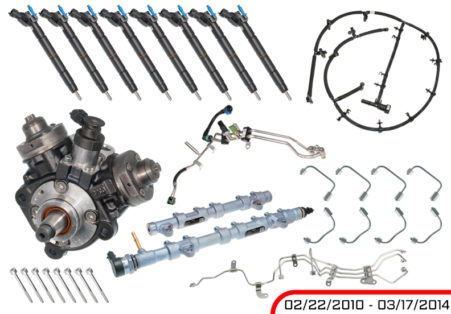

Full Kit – $2,499.99

  • Remanufactured 6.7  Injectors (8)
  • Remanufactured CP4 Pump
  • Genuine BOSCH® OEM New Fuel Rails (2)
  • Genuine Motorcraft OEM New Rail to Injector Fuel Lines
  • Genuine Motorcraft OEM New Return Line Assembly
  • Genuine Motorcraft OEM New Injector Hold Down Bolts
  • Genuine Motorcraft OEM New Fuel Pipe Assembly
  • Genuine Motorcraft OEM New High Pressure Fuel Line Assembly

Ford Kit Part # EC3Z-9B246-A / EC3Z-9B246-B (Build date range 02/22/2010 – 03/17/2014, F250/350/450/550 Super Duty

Ford Kit Part # FC3Z-9B246-B (Build date range 03/17/2014 – 07/05/2016) F250/350/450/550 Super Duty

Ford Kit Part # H3CZ-9B246-A (Build date range 07/11/2016 – 11/04/2019) F250/350/450/550 Super Duty, Narrow Frame (Chassis Cab)

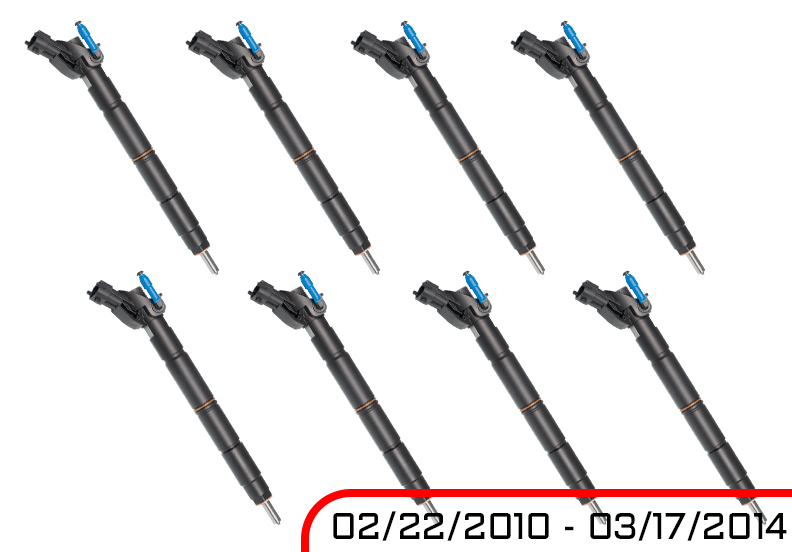

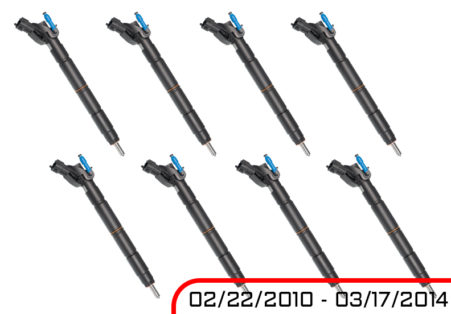

Remanufactured Injectors

These injectors are fully rebuilt using brand new components (nozzles, valves, seals, etc.).  Guaranteed to be within factory specification. Each injector includes all hardware necessary for installation (O-rings, crush washers).  In order to complete the installation of your new injectors, we recommend replacing the high pressure fuel lines which can be found HERE.

Replaces part numbers:

BOSCH®: 0 986 435 415, 0 445 117 024 (2011-14) 0 986 435 433, 0 445 117 040 (2015-20)

Ford: BC3Z-9H529-A, BC3Z-9H529-B, BC3Z-9H529-C, BC3Z-9H529-D, BC3Q-9K546-AD (2011-14) FC3Z-9H529-A, FC3Z-9H529-B (2015-20)

Motorcraft: CN-6025, CN-6026 (2011-14) CN-6019, CN-6020 (2015-20)

Diesel Forward: DKT111467, DKT151667

Remanufactured CP4 Pump

BOSCH® Part #  0 445 010 649 (2011-14) 0 445 010 810 (2015-20)

Ford Part # BC3Z-9A543-B (2011-14) FC3Z-9A543-A (2015-20)

The Remanufactured pump is rebuilt by a BOSCH ® authorized third party and features a new BOSCH ® fuel pressure regulator. This pump has a 1 year, unlimited mileage warranty.

Replaces BOSCH® Part # 0 445 010 622, 0 445 010 851, 0 986 437 422, 0 445 010 844 (2011-14) 0 445 010 804,  0 986 437 441 (2015-20)

Replaces Ford Part # BC3Z-9A543-A, BC3Q-9B395-CB, BC3Q-9B395-CC, BC3Q-9B395-CD, BC3Q-9B395-CE (2011-14) FC3Q-9B395-AA (2015-20)

Left Fuel Rail

BOSCH® Part # 0 445 218 017, 0 445 218 018

Ford Part # BC3Z-9D280-B, BC3Q-9D280-BD

Right Fuel Rail

BOSCH® Part # 0 445 218 015, 0 445 218 016

Ford Part # BC3Z-9D280-A, BC3Q-9D280-AC

Return Line Assembly

Ford Part # BC3Z-9A564-B, BC3Q-9K022-BE

High Pressure Rail to Injector Lines

Ford Part # BC3Z-9A337-G, BC3Z-9A337-F

Fuel Pipe Assembly

Ford Part # EC3Z-9J280-B, EC3Q-9J280-AB

High Pressure Fuel Line Assembly

Ford Part # BC3Z-9E964-A, BC3Q-9K337-FB

Injector Hold Down Bolts

Ford Part # BC3Z-00812-B

WARNING

Additional information

Weight 34 lbs
Dimensions 34 × 10 × 7 in
Select Vehicle Build Date

02/22/2010 – 03/17/2014, 03/17/2014 – 07/05/2016, 07/11/2016 – 11/04/2019

Core Charge Option:

Credit Card On File, Pay Core Charge, Return Cores In Advance
