6.7 Powerstroke 2015-2019 CP4 Fuel Pump Failure / DEF Contamination Kit – Remanufactured



  • same day shipping

    Most orders placed before 3:30 pm PST Monday-Friday will be shipped the SAME business day. See our Shipping Policy for more information.

  • no hassle 60 day returns

    60 day return period for any product that has not been installed and is in "brand-new" condition. See our Returns Policy for more information.

  • best warranty

    Our Limited Warranty covers manufacturing defects for 2 years on Refurbished or Remanufactured products and 3 Years on New products. See our Limited Warranty Policy for more information.

  • low price guarantee

    Found an identical product cheaper elsewhere? We want to earn your business! Send an email to sales@injectorsdirect.com with a link to the product in question. We will do our best to match or beat it!


Check this out!

Check this out!


6.7 Powerstroke 2015-2019 CP4 Fuel Pump Failure / DEF Contamination Kit – Remanufactured

Shipping Note: Standard shipping on this kit is Ground due to size & weight.  Expedited shipping options are available (prices calculated based on delivery address) and will be displayed on the checkout page.

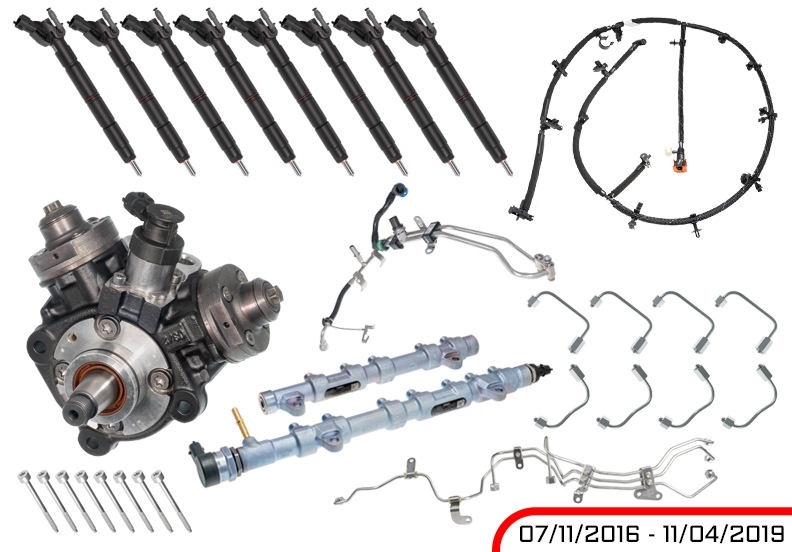

Kit Details

Complete repair solution for your 2015-2019 Powerstroke 6.7 with CP4 fuel pump failure or DEF contamination, featuring Remanufactured Injectors and Pump. Simply flushing the fuel system is inadequate, and could lead to residual contaminants in your fuel system.  Contamination is the number one cause of repeat injector failure. Replacing all of the fuel system components is the only way to prevent recurring contamination issues.

Each component carries a two-year warranty. Information about warranty policies can be found HERE.

Full Kit –  $3,299.99

  • Remanufactured 6.7  Injectors (8)
  • Remanufactured CP4 Pump
  • Genuine BOSCH® OEM New Fuel Rails (2)
  • Genuine Motorcraft OEM New Rail to Injector Fuel Lines
  • Genuine Motorcraft OEM New Return Line Assembly
  • Genuine Motorcraft OEM New Injector Hold Down Bolts
  • Genuine Motorcraft OEM New Fuel Pipe Assembly
  • Genuine Motorcraft OEM High Pressure Fuel Line Assembly

Ford Kit Part # FC3Z-9B246-A / FC3Z-9B246-B / FC3Z-9B246-C (Build date range 03/17/2014 – 07/05/2016) F250/350/450/550 Super Duty

Ford Kit Part # HC3Z-9B246-A / HC3Z-9B246-B (Build date range 07/11/2016 – 11/04/2019) F250/350/450/550 Super Duty, Narrow Frame (Chassis Cab)

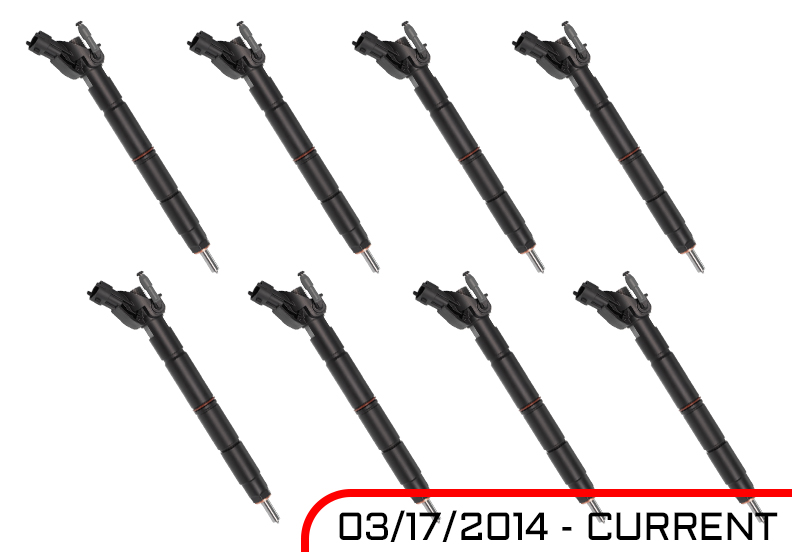

Remanufactured Injectors

These injectors are fully rebuilt using brand new components (nozzles, valves, seals, etc.).  Guaranteed to be within factory specification. Each injector includes all hardware necessary for installation (O-rings, crush washers).  In order to complete the installation of your new injectors, we recommend replacing the high pressure fuel lines which can be found HERE.

They carry a two-year warranty. Information about warranty policies can be found HERE.

Replaces part numbers:

BOSCH®:  0 986 435 433, 0 445 117 040, 0 445 117 043, 0 445 117 094

Ford: FC3Z-9H529-A, FC3Z-9H529-B, FC3Z-9H529-C, FC3Z-9H529-D (2015-2019)

Motorcraft: CN-6019, CN-6020, CN-6027, CN-6028 (2015-2019)

Diesel Forward: DKT151667

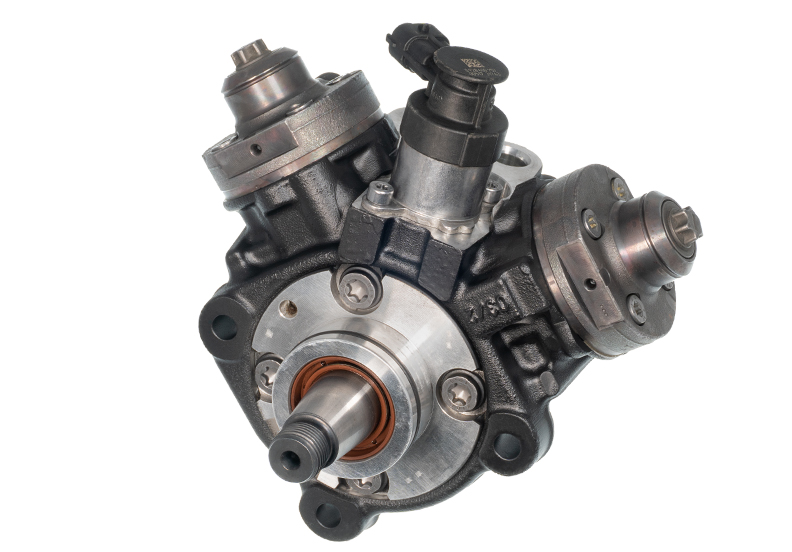

Remanufactured CP4 Pump

BOSCH® Part #  0 445 010 810 (2015-2019)

Ford Part #  FC3Z-9A543-A (2015-2019)

The Remanufactured pump is rebuilt by a BOSCH ® authorized third party. This pump has a 2 year, unlimited mileage warranty.

Replaces BOSCH® Part # 0 445 010 804,  0 986 437 441 (2015-2019)

Replaces Ford Part # FC3Q-9B395-AA (2015-2019)

Left Fuel Rail

BOSCH® Part # 0 445 218 017, 0 445 218 018

Ford Part # BC3Z-9D280-B, BC3Q-9D280-BD

Right Fuel Rail

BOSCH® Part # 0 445 218 015, 0 445 218 016

Ford Part # BC3Z-9D280-A, BC3Q-9D280-AC

Return Line Assembly

Ford Part # BC3Z-9A564-B, BC3Q-9K022-BE

High Pressure Rail to Injector Lines

Ford Part # BC3Z-9A337-G, BC3Z-9A337-F

Fuel Pipe Assembly

Ford Part # FC3Z-9J280-B, HC3Z-9J280-M

High Pressure Fuel Line Assembly

Ford Part # BC3Z-9E964-A, BC3Q-9K337-FB

Injector Hold Down Bolts

Ford Part # BC3Z-00812-B, FC3Z-00812-AA
