2011-2026 Ford 6.7L Powerstroke Fuel Leak Prevention Kit

Description

Fits 2017-2026 Ford F250-F750 trucks with the 6.7L Power Stroke diesel

Permanent fix for the crack-prone OEM plastic under-hood fuel filter on 2011-2026 Ford 6.7L Power Stroke trucks.

The factory under-hood fuel filter housing on 2011-2026 6.7L Power Stroke engines is plastic. Heat, age, and filter changes make it brittle. When it cracks, diesel can leak or spray into the engine bay. That means breakdowns, fuel smell, and in documented cases a real fire risk.

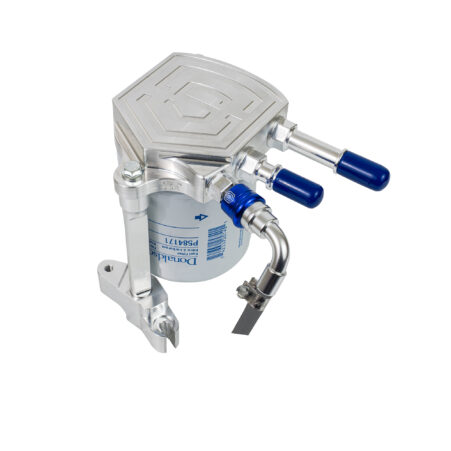

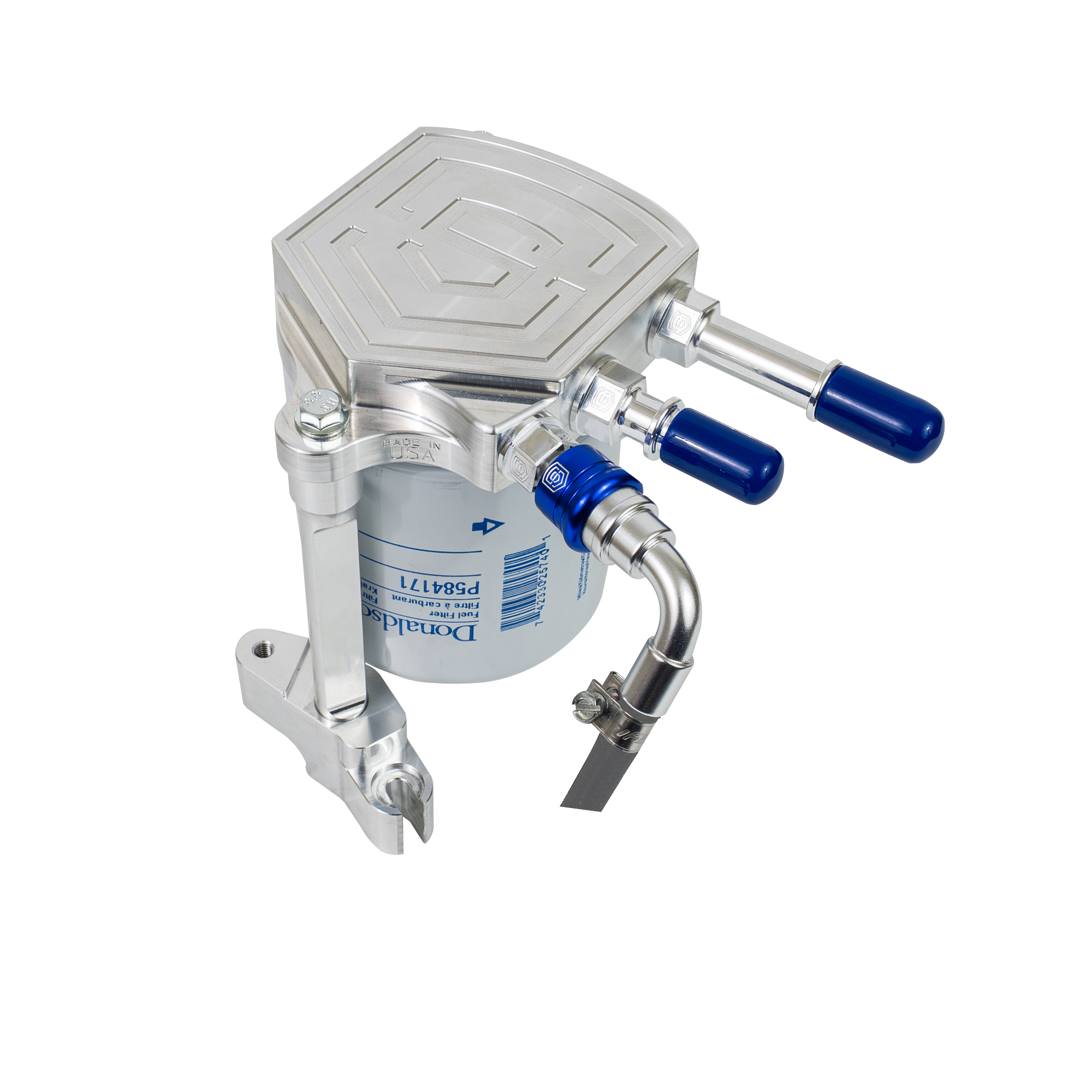

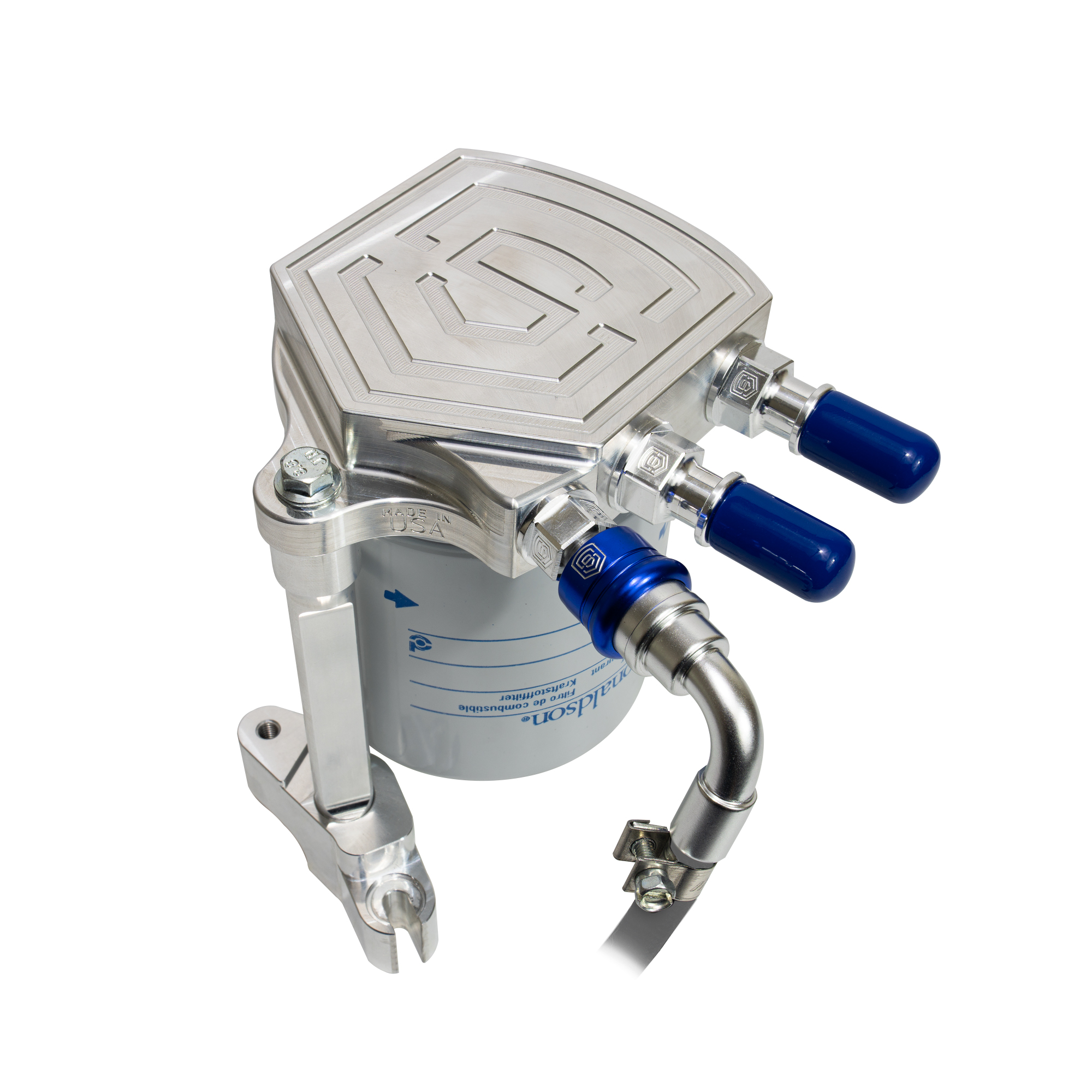

This kit replaces that housing with a billet aluminum, engine-mounted filter head and swaps the brittle plastic injector-return fitting for an all-metal Fuel Leak Prevention Fitting. Same factory location. Better filtration. No more plastic failure points.

Why it matters

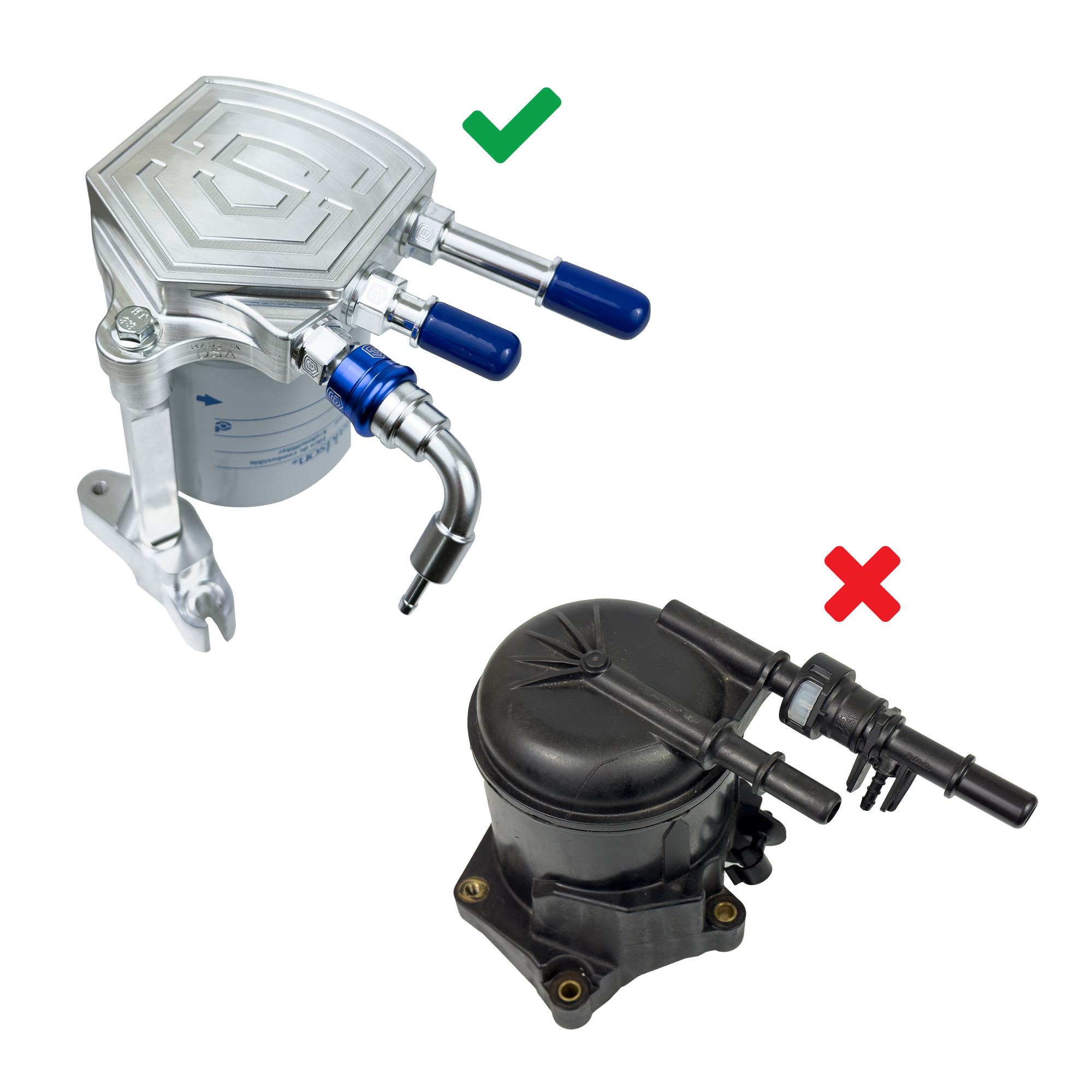

• Eliminates the OEM plastic housing that cracks and leaks under the hood
• Stops the second common leak: the brittle plastic injector return fitting
• 4-micron absolute filtration at 99% efficiency (OEM-spec)
• Nearly double the dirt-holding capacity: 23 grams vs. OEM 12 grams
• Drop-in complement to a stock fuel system, the S&S Disaster Prevention Kit, or an S&S DCR pump conversion

Key Features

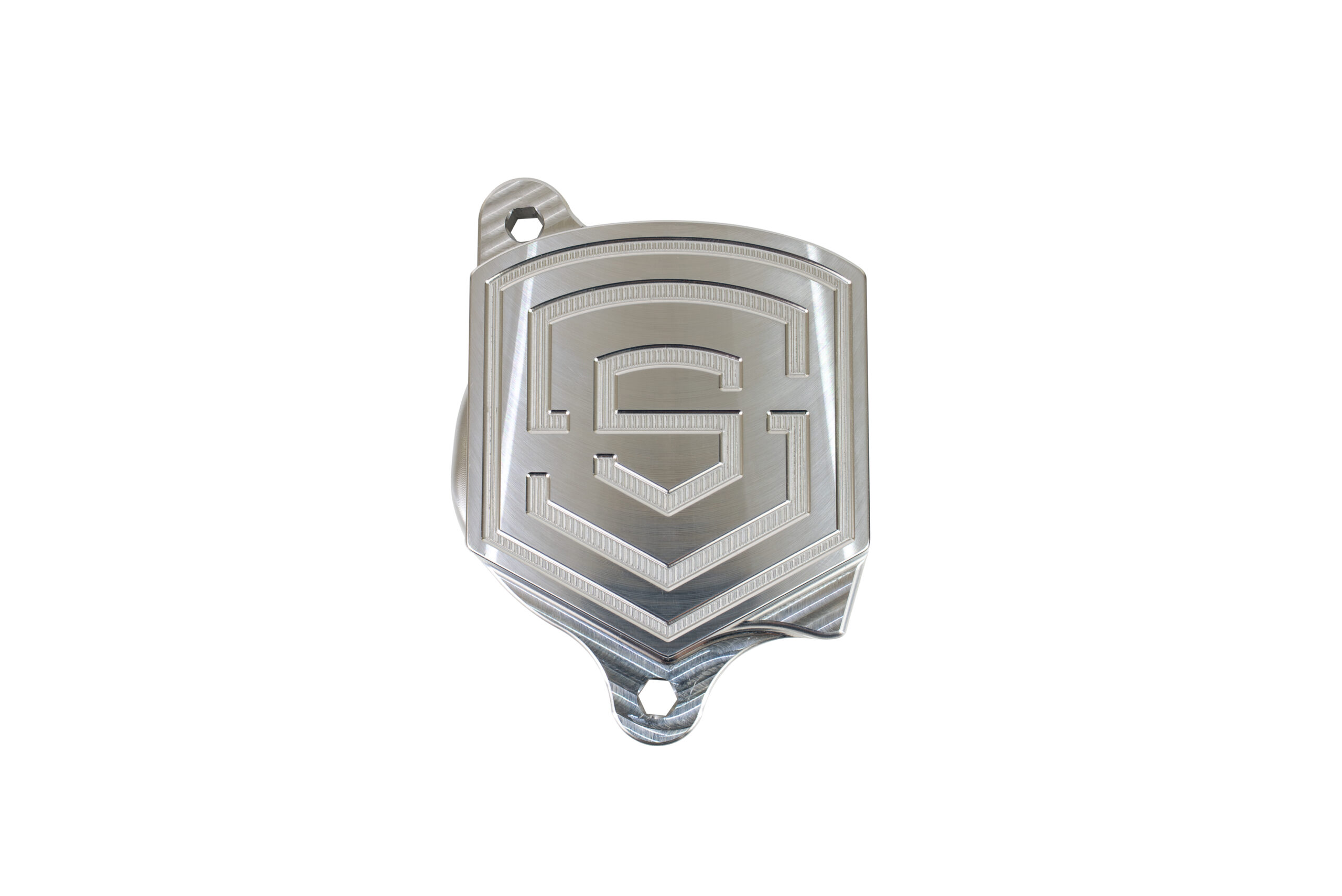

• Billet aluminum engine-mounted fuel filter housing

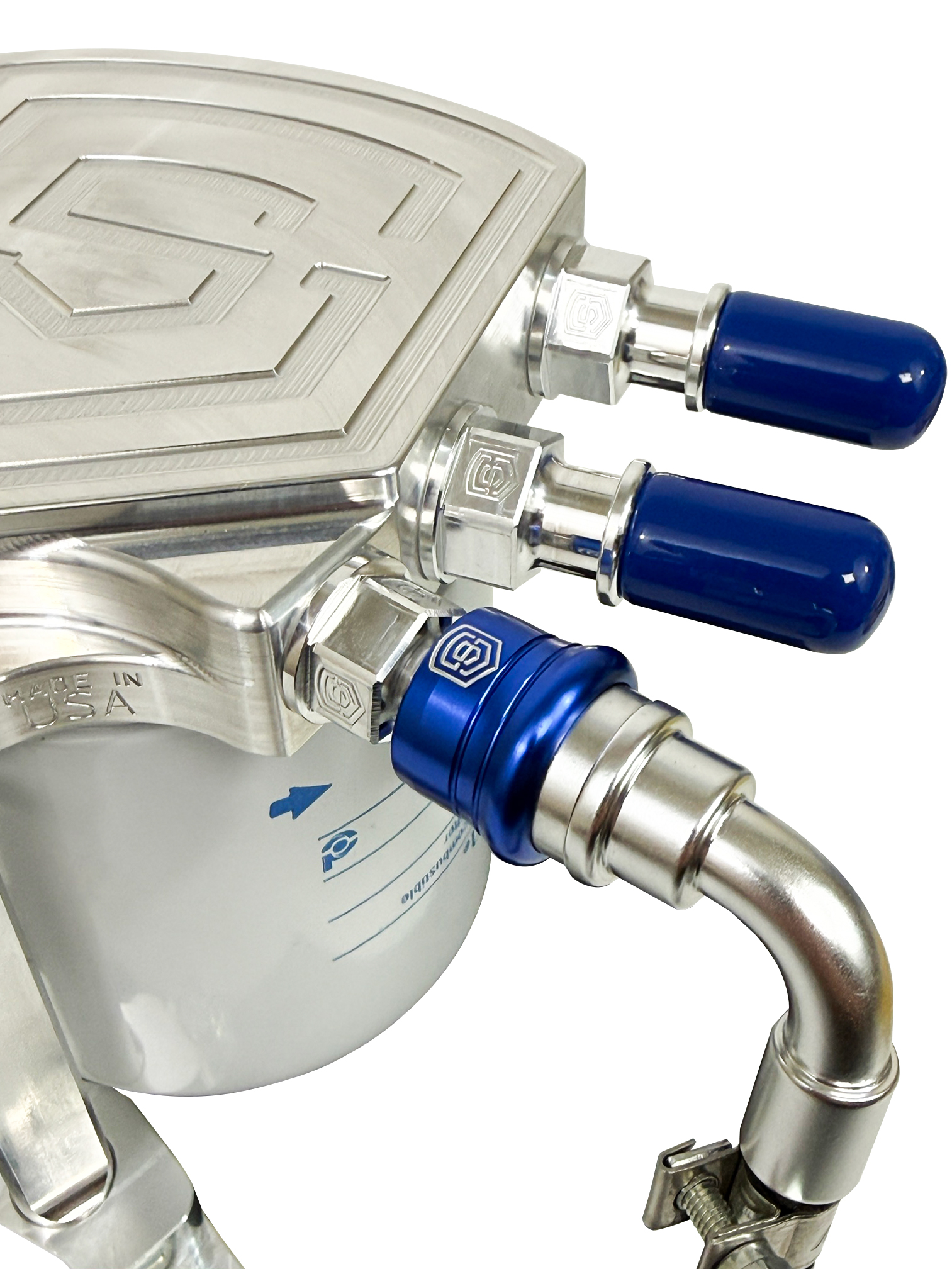

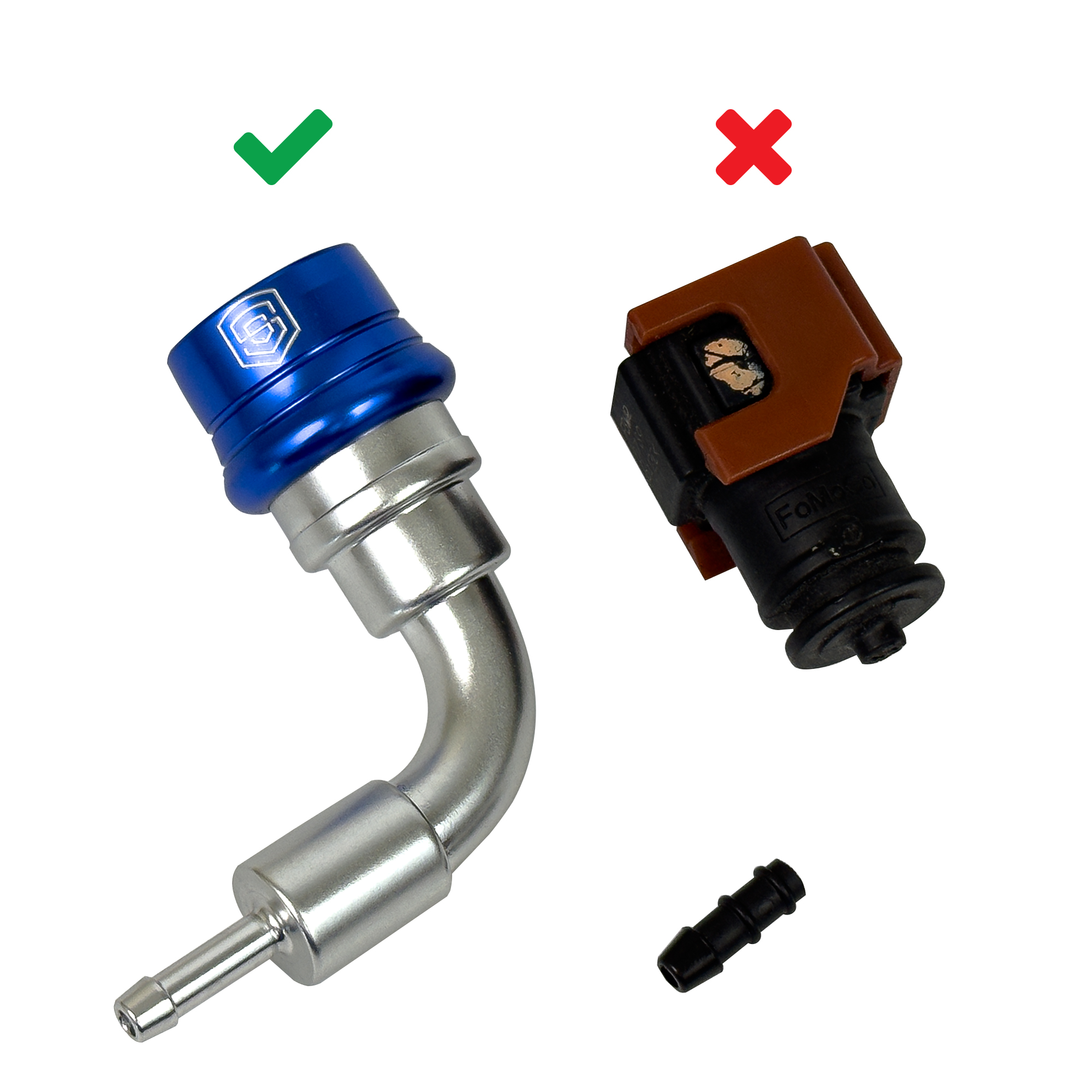

• Aluminum Fuel Leak Prevention Fitting (replaces OEM plastic return fitting)
• OEM-spec Donaldson-style spin-on filter
• Pre-installed fittings with o-ring joints rated for high pressure
• Mounting designed for easier filter service
• SEMA Category 4 – Replacement Part

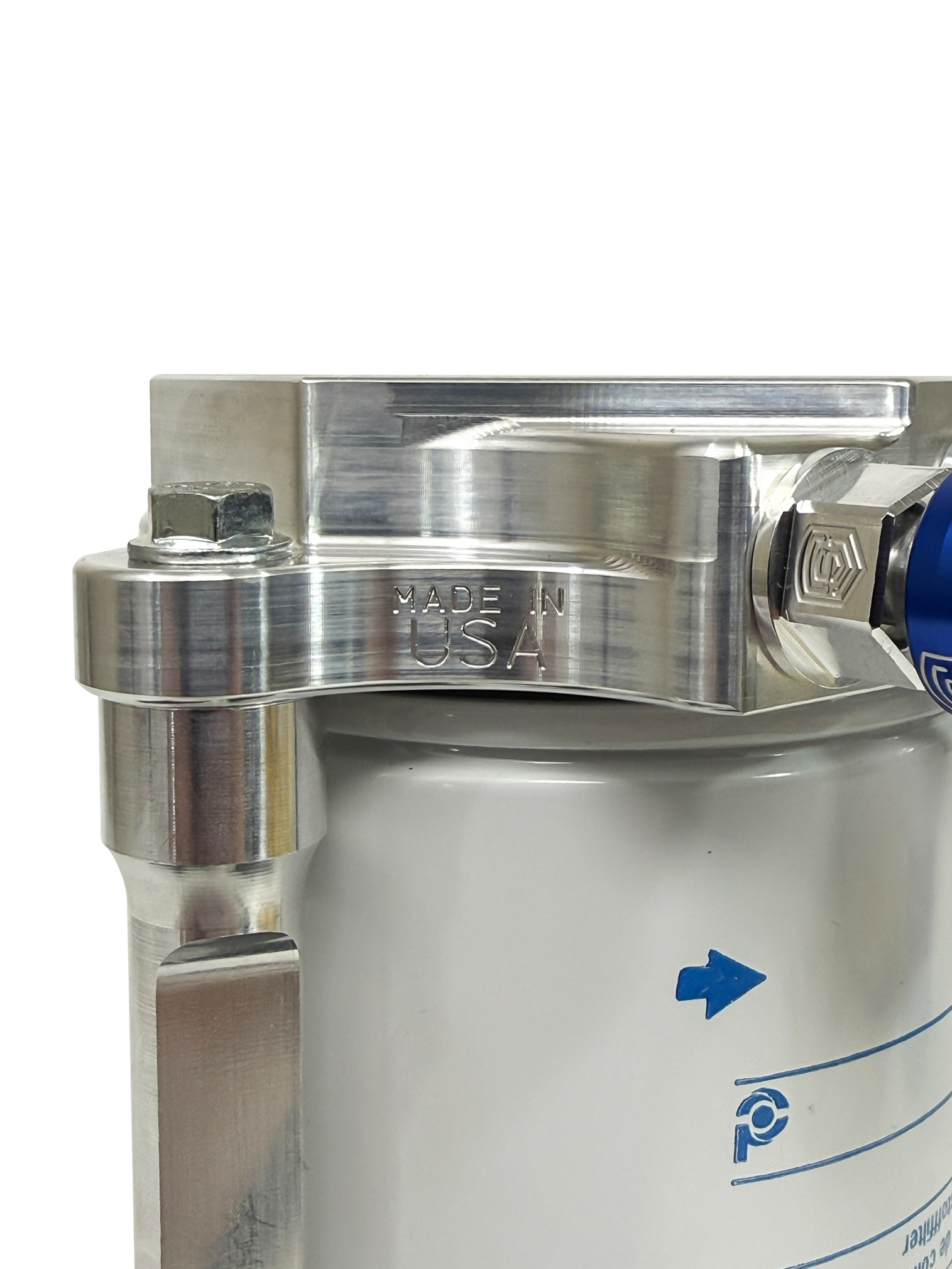

• Made in the USA
• Download Installation Instructions Here8630060-Instructions-LPK-6.7F-6July2026

Fitment
2011-2026 Ford F-250, F-350, F-450, F-550, F-650, and F-750 with the 6.7L Power Stroke diesel.
Separate kits for 2011-2016 and 2017-2026 (port layout differs by year).

Notes
Works with completely stock fuel systems and is designed to pair with the S&S 6.7L Disaster Prevention Kit or DCR Pump Conversion.
